| Photo Page 5 | |
|
More devices listed on this page. |
|
|
Security System addition's and integration to Computer control and interface.
I have 10 years with installation of Telephone, Cable TV, Card Access, Burglar Alarm system's, Fire Alarm system's and CCTV. |
 |
| Custom Guitar Preamp circuit copied from Electro Harmonix Box designed to fit within the guitar body. This circuit can be placed into any type of packaging. This circuit is a mono pre amp for a guitar amplifier, it can be used in other audio type systems, powered by a 9 volt battery. |
 |
|

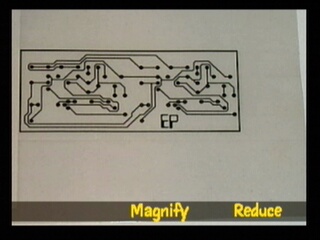

Stereo Pre Amp Circuit design two of the above circuits on one board.
This design was for a stereo electric acoustic guitar. With the installation of toggle switches on the guitar the musician can instantly increase his sound to play lead then back again without any delay in action. |
 |
|
Artwork is Printed 2 to 1 ratio it is then reduced to 1:1 onto a clear plastic sheet, ready for photo etching.
This is a very simple design. Circuitry with more advanced options as examples will be uploaded to this site when all designs are filed and approved. |
 |
|
Networking Computers
|
 |
|
Camera System's for security
A camera can provide proof of vandalism and other type's of security threats. |
 |
|
Installation of specialty Camera's as well.
Camera uses other than security, record an event or special training review at a later date. |
 |
 |
|
